UniFi Aggregation Switch

USW-Aggregation is a managed Layer 2 switch with eight 10G SFP+ ports, offering link aggregation for higher capacity and increased availability. USW-Aggregation features Layer 2 capabilities and supports highbandwidth links, making it ideal for aggregation switching to any UniFi solution that deploys various interconnect topologies. Built-in 36W AC/DC power supply can support copper Ethernet UF-RJ45-10G modules (sold separately) in all eight ports.

Mechanical

Dimensions 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72') Weight Without Mount: 2.65 kg (5.84 lb) With Mount: 2.74 kg (6.04 lb) Enclosure Material SGCCSteel

Hardware

Total Non-Blocking Throughput 80 Gbps Switching Capacity 160 Gbps Forwarding Rate 119.04 Mpps Max. Power Consumption 30W Power Method Universal AC Input: 100-240VAC, 50/60 Hz Power Supply AC/DC, Internal, 36W Management Interface EthernetIn-Band Modes SMB Layer 2 GigabitEthernetSwitch ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV Operating Temperature -5 to 40° C(23 to 104° F) Operating Humidity 10 - 90%Noncondensing Certications CE, FCC, IC

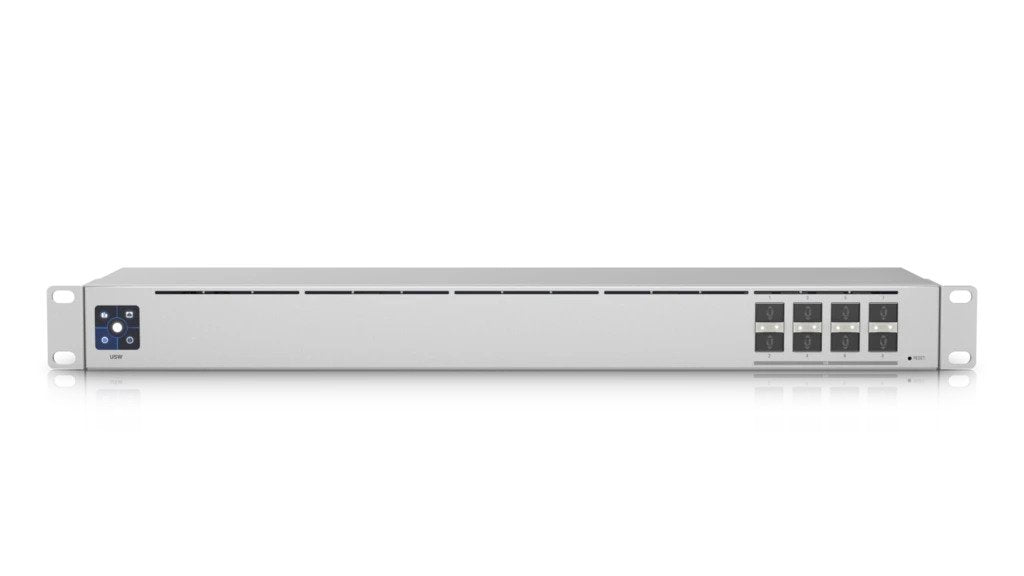

Ubiquiti UniFi 8-port 10G SFP+ Aggregation Switch, Layer 2 Switch, Fanless, 1U Rackmount
